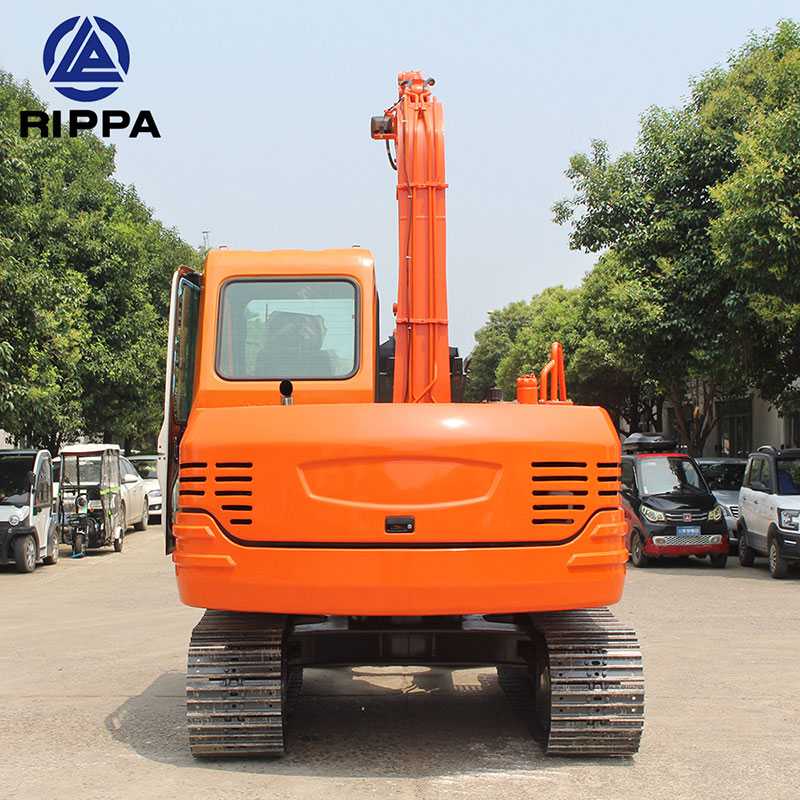

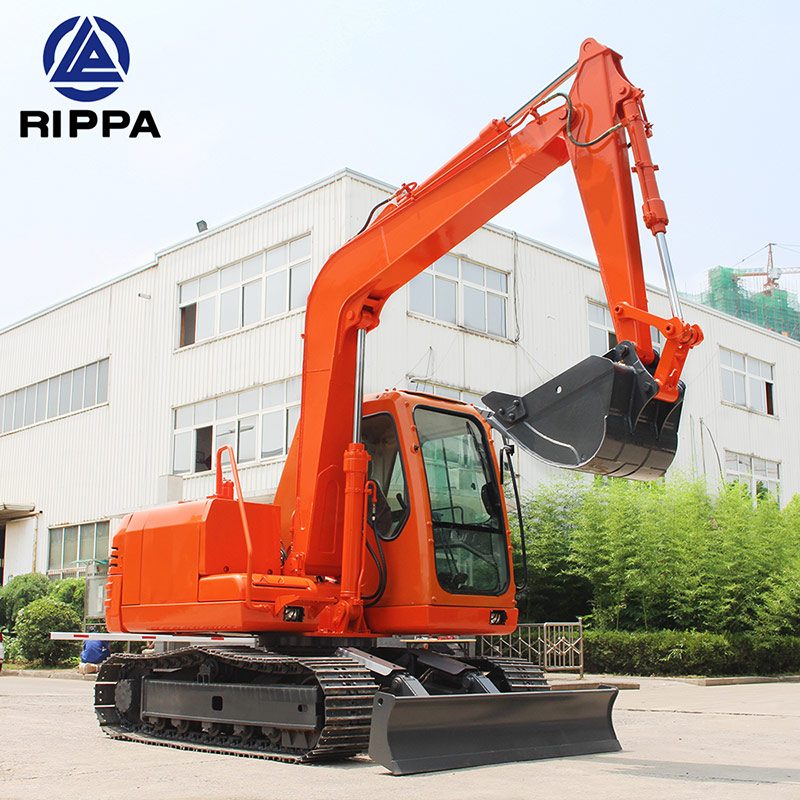

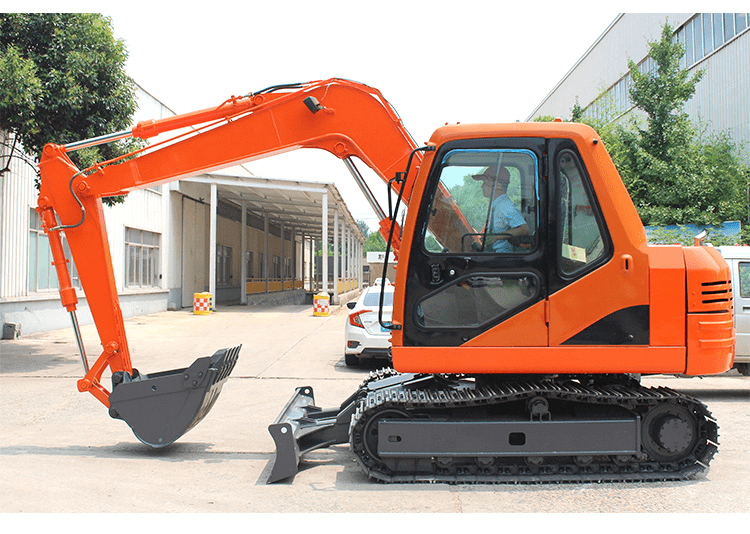

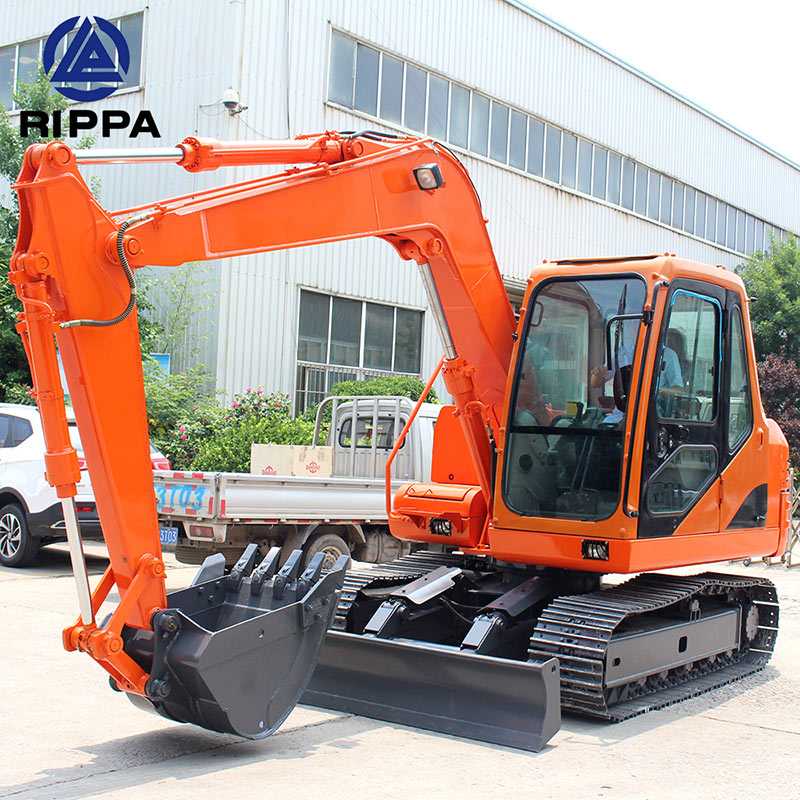

The Rippa NDI90 is an 8-ton machine designed to increase digging force. Compared to other products of the same level, it has more digging force and more traction. Its advantages and characteristics determine that it is suitable for the worst working conditions in urban construction such as broken roads. You can choose an engine equipped with Doosan or Cummins, which has high and stable power output and has proven itself in the market.
MORE PARAMETERS
Model |
NDI90 medium excavator |
MASS |
|
Total weight |
8202kg |
SIZE |
|
Total length |
6224mm |
Total width |
2150mm |
Total height |
2785mm |
Max. digging radius |
6305mm |
Max. Digging depth |
3380mm |
Max. digging height |
6882mm |
Max. unloading height |
5100mm |
Min. ground clearance |
380mm |
DRIVING |
|
Engine make |
Doosan/Cummins |
WALKING CHARACTERISTICS |
|
Walking speed |
0-35km/h |
Lift angle |
35° |
STANDARD CONFIGURATION
Pilot multiplex valve / Adjustable piston pump / Eaton engine, USA / Engineering cylinder, integrated American Parker seal / Adjustable dozer / CST tire / Adjustable driver's seat / Standard bucket / Hydraulic lock / Cab / Rescue hammer / Portable fire extinguisher / Audio system / Fan
ADDITIONAL CONFIGURATION
Hammer / ripper / log grapple / rake / auger drill / large bucket / mud bucket / conditioner
